                                                                                         MODEL #:PS-WM3GR

WM3GR - WiFi & GSM Dual Network Alarm System
Alarm kit1.tif
Features:
​

  • 1. Dual-network 【WIFI & 3G 】 alarm technology, can work independently;

  • 2. Unique 【patent U 】 shape，sharlply scare intruders

  • 3. LCD display and capacitive touch buttons;

  • 4. Can learn 8 wireless remote controller and 10 RFID cards;

  • 4. 10 wireless zones (80 detectors in total) and 3 wired zones;

  • 5. Each zone can be independently armed ,support accessories alarm, low voltage alarm, tamper alarm and other SMS tips;

  • 6. Can preset 6 groups of alarm calls ,3 groups of SMS alarms;

  • 7. Support mobile phone APP (Android and IOS ) operation;

  • 8. With one-way relay alarm linkage output, 4-way wireless home appliances control;

  • 9. Timing arm/disarm, delay arm, delay alarm, alarm time can be reset;

  • 10. 30 alarm records can be queried;

  • 11. Remote arm, disarm, monitor, intercom and other functions;

  • 12. Built-in high-capacity lithium battery, can also work properly when power off.

  • Configurable Wireless Device Capacity 8 remote controls, 80 detectors, 10 RFID cards

  • Wireless Transmission Frequency 315MHz/433MHz/868MHz

  • Wireless Reception Frequency 433MHz

​

Untitled-10 copy.tif
Shome Vert.tif
Technical Parameters:
​

  • ItemsParameters

  • Power SupplyAC=100V-240V±10%, DC 12V

  • Standby Current<180mA

  • Alarm Current<450mA

  • WiFi Frequency Range2.412MHz-2.484MHz

  • WiFi StandardIEEE 802.11 b/g/n

  • Wireless Reception Frequency315/433(Default)/868/915 MHz ± 0.5MHz

  • 3G ModeUC15-E:GSM900/1800 UMTS900/2100
    UC15-A:GSM850/900 1800/1900 UMTS850/1900
    UC15-T:GSM850/900 1800/1900 UMTS850/2100

  • Wireless Receiving Sensitivity5mV/n

  • Anti-interference Strength1V/m (frequency range 20-100MHz)

  • External Alarm Siren Sound Intensity110dB

  • Working Temperature-10℃~40℃

  • Relative Humidity≤90% without condensation

                                              Optional Wireless Alarm Accessories
Solar Alarm Siren.tif

PSJD-W06

Wireless Solar Power Red Flashing Siren

​
Description:
​

The PSJD-W06 - Wireless Solar Power Siren with red flashing strobe light, can work in any outdoor weather conditions.



Features:

​​

  •  Fashionable and Waterproof Design: With double-deck waterproof coil design, it can work in normal state in any weather outdoor.

  • Alarm with Flash Light and Sound: Integrate both high-bright flashing light and high-decibel sound. When alarm occurs, bright light and sharp alarm will effectively shock and deter the criminals.

  • Wireless Detection: It can work as a high power flash siren as well as a spot alarm panel. As an alarm panel, it can work with at most 100 wireless detectors.

  • Solar Power Supply, Energy-saving and Environmental Friendly: Solar panel can change solar power into electric power supply for the whole system. With a large area of solar panel and large capacity of built-in battery as well as its lower power consumption, it can work normally even in cloudy and rainy days for a month.

​

Technical Parameters:

​

  • Standby Current<10mA

  • Solar Power Recharging Current 155 mA

  • External Power Supply DC 12V/1.2A

  • Recharging Current 310mA

  • Alarm Current 350mA

  • Wireless Receiving Frequency 315/433+0.5MHz

  • Wireless Receiving Distance>80M (no obstacle)

  • Working Temperature 10℃~40℃

  • Working Humidity 90% (no fog)

  • Built-in Battery Polymer battery 7.4V/2100mA

​

​

Alarm Siren Large white.tif

PSJD-H004

Wired Large White Loud Horn Siren
​
Description:
​

This PSJD-004 handy large white horn siren has a sturdy ABS housing and adjustable mounting bracket, and a 1 ft. pigtail for making connections.

​

Features:
​

  • Two selectable tones - It can be wired to produce your choice of a steady high-pitched tone, or a more traditional multi-tonal siren effect.

  • Very durable PVC plastic

  • Suitable for indoor and outdoor application

  • No maintenance necessary

  • Three color coded wires - ground (white), steady tone (yellow) & multi-tonal (red)

  • High pitch 125dB noise rating

  • 40 watts power

  • 5" x 8" Two Tone Horn Alarm Warning Siren

  • Operates on 6-12 VDC.

  • Physical Size - 5" x 8" x 9-1/4"

Alarm Siren Red Flashing.tif

PSJD-W06

Features:
​

  • Mini Alarm Siren Strobe Light Alarm

  •  LED Flash Strobe Siren adopt Independent high tone horn design

  • Loud high pitch 120 dB alarm volume.

  • Arm and disarm sound notification, can be used together with panel, door magnetic, emergency buttons, play a role in treble help and deterrence

  • Beautiful appearance, loud voice, suitable for installation in corridors, windows and other places.
    Can be used with intruder alarm and fire alarm system


PSJD-W06

WIRELESS DUAL PET-IMMUNE PIR INFRARED DETECTOR
​
Description:
​

PSHW-06D Wireless Dual Pet-immune PIR detector adopts a number of advanced analysis techniques of dynamic threshold adjustment, artificial intelligent process etc. According to infrared spectra from human body to do intelligent analysis and quantum chemical calculation, then compared to the current environment, accurately send alarm for the movement of human body, make sensors more stable, more effectively, avoid false alarm by pet.

​

Features:

​

  • Adopt high-end double infrared sensor and artificial intelligent algorithm technology;

  • Two important detection windows, immune to pets weighing below 25KG;

  • Dynamic threshold adjustment technology, with good resistance to light and electromagnetic interference;

  • Detecting sensitivity is adjustable to meet different environment requirements;

  • Unique intelligent power saving mode, can prolong battery life;

  • Built-in 2262 and 1527 encoding, can work with most alarm panels in the market;

  • Use the precision Fresnel lens technology to improve the efficiency of energy reception;

  • Adopt SMT manufacturing, more reliable performance;

  • Suitable for residence, shopping mall, machine room, warehouse, factory etc.

​

Technical Parameters:

​

  • Operating Voltage DC 3V (2 AA LR6 AM3 1.5V)

  • Quiescent Current ≤18uA

  • Working Current≤15mA

  • Detecting Range 7-9 meters

  • Wireless Transmission Distance 70 meters (open area)

  • Detection Angle 70°

  • Detection of Walking Speed0.3m/s-3m/s

  • Self-test Time≤60s

  • Alarm Indication Red LED light

  • Infrared Sensor 2 pairs of pyroelectric infrared sensor

  • Wireless Transmission Frequency 433/868MHz (optional)

  • Relative Humidity 5%-95% RH (no condensation)

  • Installation Wall or corner installation

  • Installation Height 1.7m-2.2m

  • Storage Temperature -10℃~65℃

  • Detector Size 107mm*52mm*41mm

  • Meet the Standard GB10408.1; GB10408.6; GB16796


PSJD-W06

Features:
​

  • Model Number

  • SL-150

  • Strobe Frequency - 120-150 times/minute

  • SPL

  • 110DB

  • Working Voltage - DC6-15V/DC9V-28V

  • Power - 15W

  • Strobe Current - 50mA(average)

  • Piezo Current - 150mA

  • Sound -  single Tone

  • Strobe Source - LEDs

  • Strobe Frequency - 2.3-4.3KHz

  • Plastic Material - ABS/AS/PC

  • Color - Red & White

  • Size - 72(W)*123(L)*45(H)mm


PSJD-W06

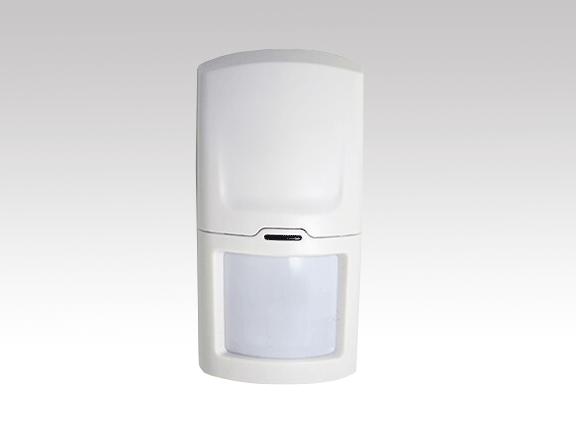

WIRELESS PET IMMUNE INFRARED MOTION DETECTOR
​
Description:
​

The PSHW-03D wireless PIR Infrared detector is a special home and business PIR Infrared detector with delicate and modern design (appearance has patent), adopting the latest technology of smart logic IC and high-performance sensor to achieve high stability and avoid alarm failure.

​



​

Features:

​

  • Multi-time detecting to improve sensitivity to reduce false alarms from light flare and pet interference

  • Dual Infrared sensor for more precise detection

  • Ultra-wide detection zone

  • Low power notification

​

Technical Parameters:

​

  • Sensor Passive IR sensor with low noise

  • Working Voltage DC6V (4pcs AAA 1.5V dry batteries)

  • Static Current<60uA

  • Alarm Current<20mA

  • Working Temperature 5℃~45℃

  • Working Humidity ≤95% (no fog)

  • Transmitting Frequency 315/433 + 0.5MHz

  • Transmitting Distance No obstacle 80M

  • Detecting Distance 12M max

  • Detecting Angle Horizontal 110°, Vertical 60°


PSJD-W06

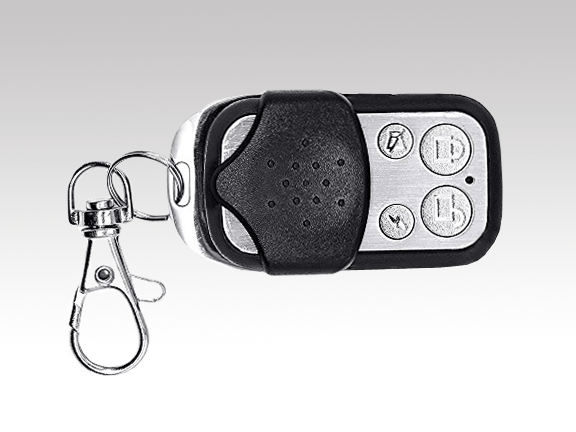

BLACK PLASTIC WIRELESS REMOTE CONTROL
Features:
​

  • Durable metal and plastic housing

  • Four button remote - arm, disarm, home arm and panic

  • Safety cover - prevents user from accidentally depressing any button

  • Keychain hook clip

  • 12 volt 27A alkaline battery

Black Remote Control.tif

PSJD-W06

BLACK PLASTIC WIRELESS REMOTE CONTROL
​
Description:
​
YK-11 - Wireless Waterproof Remote Controller, User-friendly and elegant UI, Used in a variety of occasions
​
Features:
​

  • Wireless waterproof intelligent remote controller: User-friendly and elegant UI, designed especially for you;

  • Design fit into human hand structure: Unique big button, convenient for using, super transmitting distance for remote control; 3. Silica gel material, perfectly waterproof: Suitable for use in a variety of occasions;

  • Mirco-power consumption PCB design: Internal 2pcs CR2032 lithium battery, durable and long lasting

  • ​

Product Description:

​

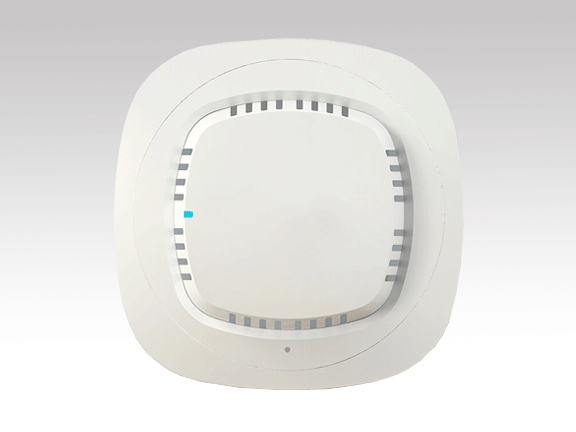

  • The YG-07A Wireless Smoke Detector is a photoelectric smoke detector uses a unique structural design, and uses MCU for intelligent processing of optical signals, from design to ensure product stability. It responds well to the smoke of smoldering and burning. It is equipped with photoelectric smoke sensor, when the ambient smoke concentration reaches the alarm level, the detector will send out sound and light alarm signal.

​

Key Features:

​

  • Using imported US chips to ensure stable and reliable performance;

  • Using optical maze smoke detector, without any radiation;

  • Using ultra-low power design, can effectively extend battery life;

  • Sound and light alarm, battery low voltage tips;

  • Manual reset and fault self-test function;

  • Smoke detection sensitivity adjustable to meet different environmental needs;

  • Built-in wireless transmitter module, can work with alarm host;

  • Suitable for residence, shop, shopping mall, office building, library,

Description:
​

  • This photoelectric smoke detector/smoke alarm is uniquely and stably designed, adopts smart MCU photoelectric process,has sensitive detection to visible smoke. There is an internal photoelectric smoke sensor, when the smoke potency exceeds preset potency, the detector will send alarm signal and make alarm by both sound and light.

​

Features:

  • Ultra-low power consumption, standby current <5uA

  • Infrared photoelectric smoke sensor

  • Alarm by sound and light alarm

  • Battery low voltage reminder

  • Failure self-checking

  • Wireless distance: 80m

  • Sensitivity adjustable for different environment

  • Suitable for house,shop,mall,office,lab,bank,gym,warehouse

Alarm IP Camera.tif
Features:
​

  • 1. Dual-network 【WIFI & 3G 】 alarm technology, can work independently;

  • 2. Unique 【patent U 】 shape，sharlply scare intruders

  • 3. LCD display and capacitive touch buttons;

  • ​
